black AIR-board® ECO PC clear
REQUEST SAMPLES

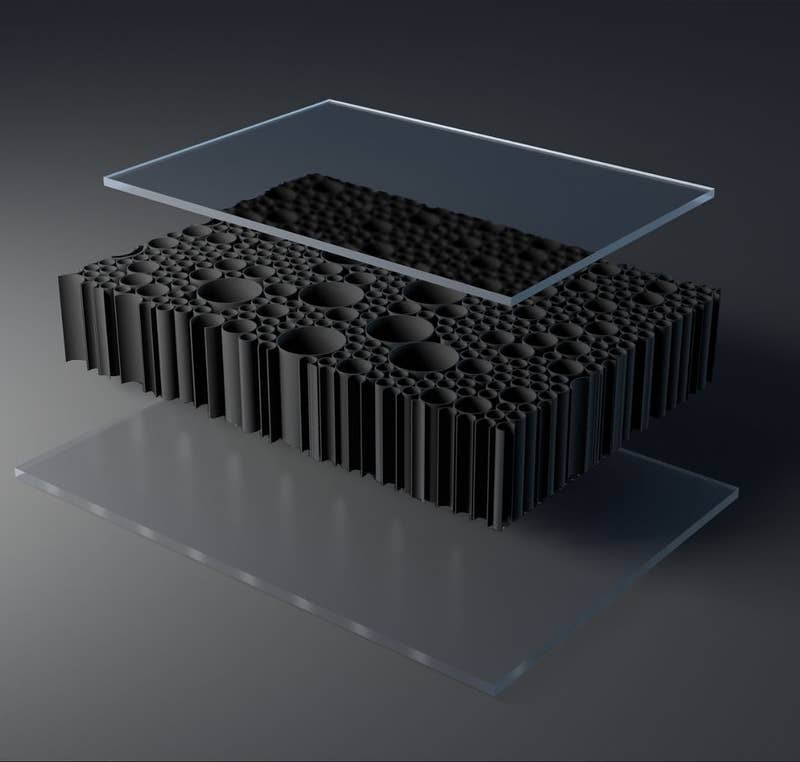

black AIR-board® ECO PC clear honeycomb panels are made with three polycarbonate (PC) core options and clear PC facing sheets with sustainable raw material content. PC ECO is the facing layers and has a bio-circular material content and low CO2 footprint. Normally manufactured using fossil fuels, these components have been replaced by bio-based renewable raw materials. The attributed share is up to 83% of the total material content. In addition, black AIR-board® ECO PC clear is 100% recyclable. These lightweight panels combined with different core options can be used in many different ways in interior architecture to suit the needs of your design. Visit the Resources section for edge finishing and other options.
Full fabrication services are available and hardware integration resources may be available.
GALLERY
DIMENSIONS
| Format | Length [mm/inches] | Width [mm/inches] | **Thickness [mm/inches] |
|---|---|---|---|
| Standard | 3,020/118.8 | 1,220/48 | 19/0.75 |
| Special Dimensions* | |||
| black AIR-board® ECO PC clear big black AIR-board® ECO PC clear chaos black AIR-board® ECO PC clear |
max. 3,500/137 max. 3,020/118.8 max. 3,020/118.8 |
max. 1,500/59 max. 1,300/51 max. 1,300/51 |
max. 30/1.18 max. 30/1.18 max. 30/1.18 |
| Production/Cutting Tolerance | 2/-2 to 0.08/-0.08 | 1/-2 to 0.04/-0.08 | 0/-1 to 0/-0.04 |
* on request – minimum orders apply
** thickness of 12mm/0.47″, 16mm/0.63″ and 30mm/1.18″ are also available, minimums or extended lead times may apply.
PHYSICAL PROPERTIES
| Product | Coefficient of Thermal Expansion acc. to DIN 537522-A [1/K] |
Service temperature [C/F] | Facing Sheets | * Estimated Light Transmission [%] |
|---|---|---|---|---|
| black AIR-board® ECO PC clear | 6.5 x 10-5 | -30 to +80 / -22 to 176 | 2mm PC clear | – |
* estimated using standard thickness of 19 mm / 3/4″
MECHANICAL PROPERTIES
| Thickness [mm/inches] |
Weight per unit area [kg/m2/lbs/sqft] |
Thermal insulation U-value [W/M2K] |
Sound insulation RW [DB] |
*Modulus of Elasticity [N/MM 2] |
|---|---|---|---|---|
| 19/0.74 | 5.9/1.20 | 2.4 | 21 | 532 |
| 30/1.18 | 6.6/1.35 | 1.7 | 23 | 1,688 |
*per 1m panel width
FIRE CLASSIFICATION
| Fire Classification | ASTM D-2843 Smoke Density [%] |
ASTM D-635 Burning Rate [inches] |
ASTM D-1929 Self Ignition Temp. [oF] |
|---|---|---|---|
| C1/CC1 | 36.50% | 0.47″ | 1,095 |
POPULAR APPLICATIONS
Interior design, wall / ceiling, partitions, doors, shop and exhibition construction, stage construction, artistic applications, furniture, lighting design
All information and specifications contained herein are based on the most up-to-date information available and to the best of our knowledge. These specifications are subject to change at any time. A legally binding assurance of certain properties or the suitability of an individual type for a specific field or application cannot be inferred from these specifications. All information is provided without any obligation. No legal liability can or will be assumed.
